Roller Shutter Installation Types

gallery/1
gallery/2
gallery/3

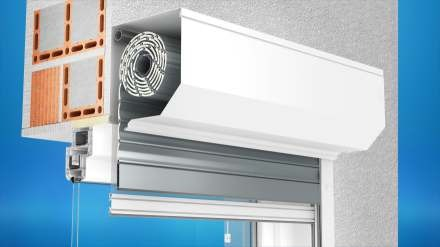

 A TYPE OF INSTALLATION
The whole shutter box is installed on the building facade. The strap drive  is conducted through the rear of the box, then through an opening in the wall into the rooms. We perform this installation after the installation of windows.

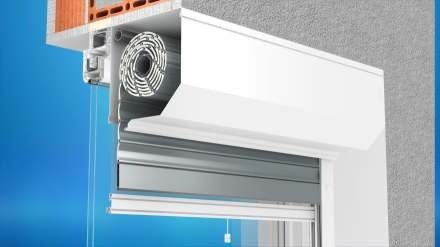

 B TYPE OF INSTALLATION
The whole shutter box is screwed on a window frame. The output of the drive (strap) is through the window frame. It should be remembered to insert the shutter box with guides into the window recess.

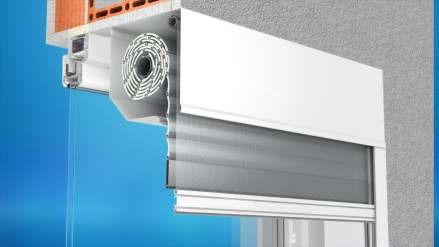

 C TYPE OF INSTALLATION
The shutter box is mounted conversely inside the window recess. Remember that between the shutter and the window there
would be a place for the opening of the revision hatch. Also, take into consideration that the curtain is also reversed
(from the outside we can see its back).
