Roller shutter profiles

The aluminum profiles are made of rolled sheet, powder-coated, filled with Freon-free polyurethane foam. It ensures perfect acoustic and thermal insulation.

Profile height: 39 mm (1-1/2")

Number of slats per meter of height: 26 pcs.

Maximum width of the shutter: 2500 mm (98")

Maximum area of the shutter: 6,5 m2 (70 ft2)

Weight of 1 m2 (10.76 ft2): 2,8 kg (6.2 lbs.)

gallery/pa-45 profile with perforation

Profile height: 45 mm (1-3/4")

Number of slats per meter of height: 23 pcs.

Maximum width of the shutter: 3000 mm  (118")

Maximum area of the shutter: 6,5 m2 (70 ft2)

Weight of 1 m2 (10.76 ft2): 2,9 kg (6.4 lbs.)

gallery/pa-52 profile with perforation

Profile height: 52 mm (2")

Number of slats per meter of height: 19 pcs.

Maximum width of the shutter: 3700 mm (145")

Maximum area of the shutter: 8,0 m2 (86 ft2)

Weight of 1 m2 (10.76 ft2): 3,0 kg (6.6 lbs.)

gallery/pa-39 profile with perforation
gallery/pa-39
gallery/pa-45
gallery/pa-52

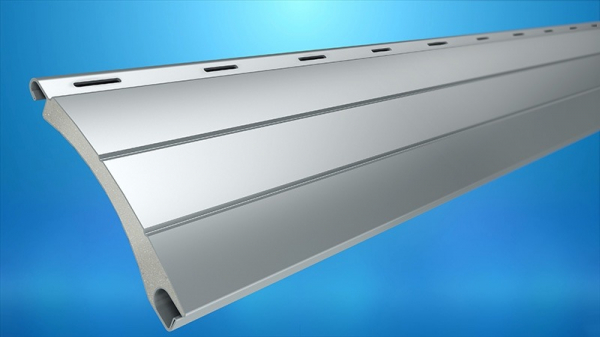

Aluminum PA-39  Profile Perforated

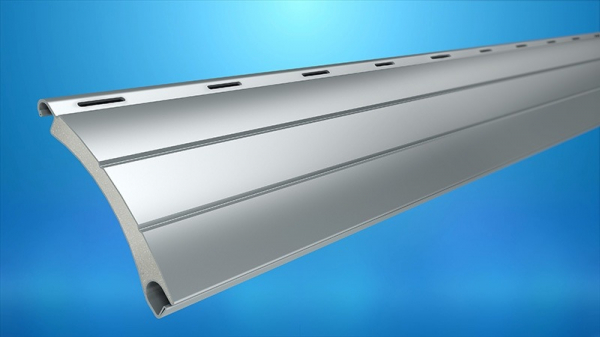

Aluminum PA-45  Profile Perforated

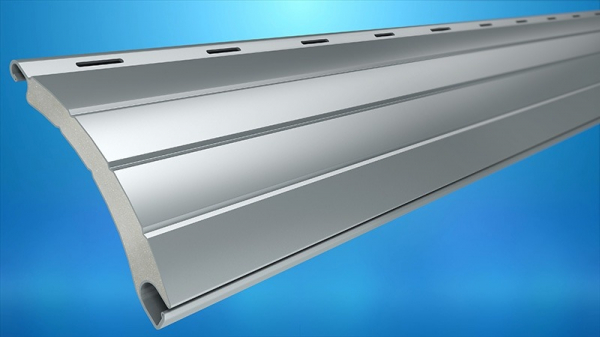

Aluminum PA-52  Profile Perforated
